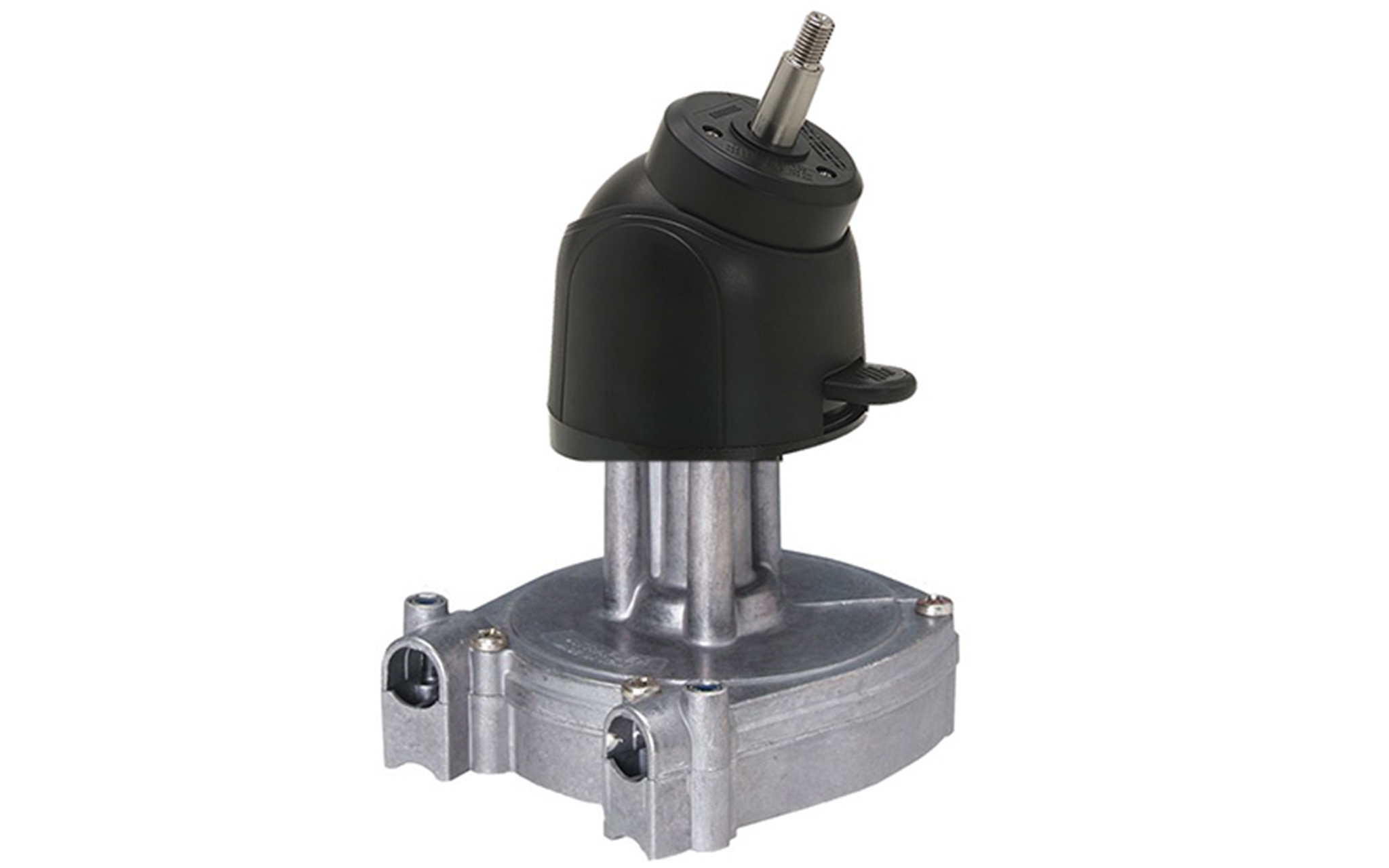

T83FC 38959 N No Feedback Rotary Tilt Helm

Price: $198.99
  • SKUT83FC
- +

T83NRFC 38959 N No Feedback Rotary Tilt Helm

T83NRFC is for Single cable applications. One X52 Tilt mechanism required for each helm. X52 kits sold separately. (Pictured is the T81FC with the X52 Tilt Mechanism).

T83NRFC 38959 N No Feedback Rotary Tilt Helm

Tilt range of 48° and five locking positions Fast connect, simple installation Tilt device eliminates underdash movement Standard 3/4” tapered shaft - stainless steel All stainless steel cable output ends
 Corrosion resistant materials Lock-to-lock steering wheel turns: approx. 3.8  Stroke: 9” (228 mm)
 Maximum allowable steering wheel diameter: 16” (406 mm) Minimum steering cable bend radius:
7.9” (200 mm) Available Helms T81FC, T82FC and T83NRFC steering systems are not to be used on boats equipped with engines that exceed the maximum horsepower rating of the boat  For boats faster than 50 mph our hydraulic steering systems are recommended  Exceeds EN 28848 safety standards  Exceeds ABYC P17 safety standards



T81 T82 And T83 Tilt Specification
