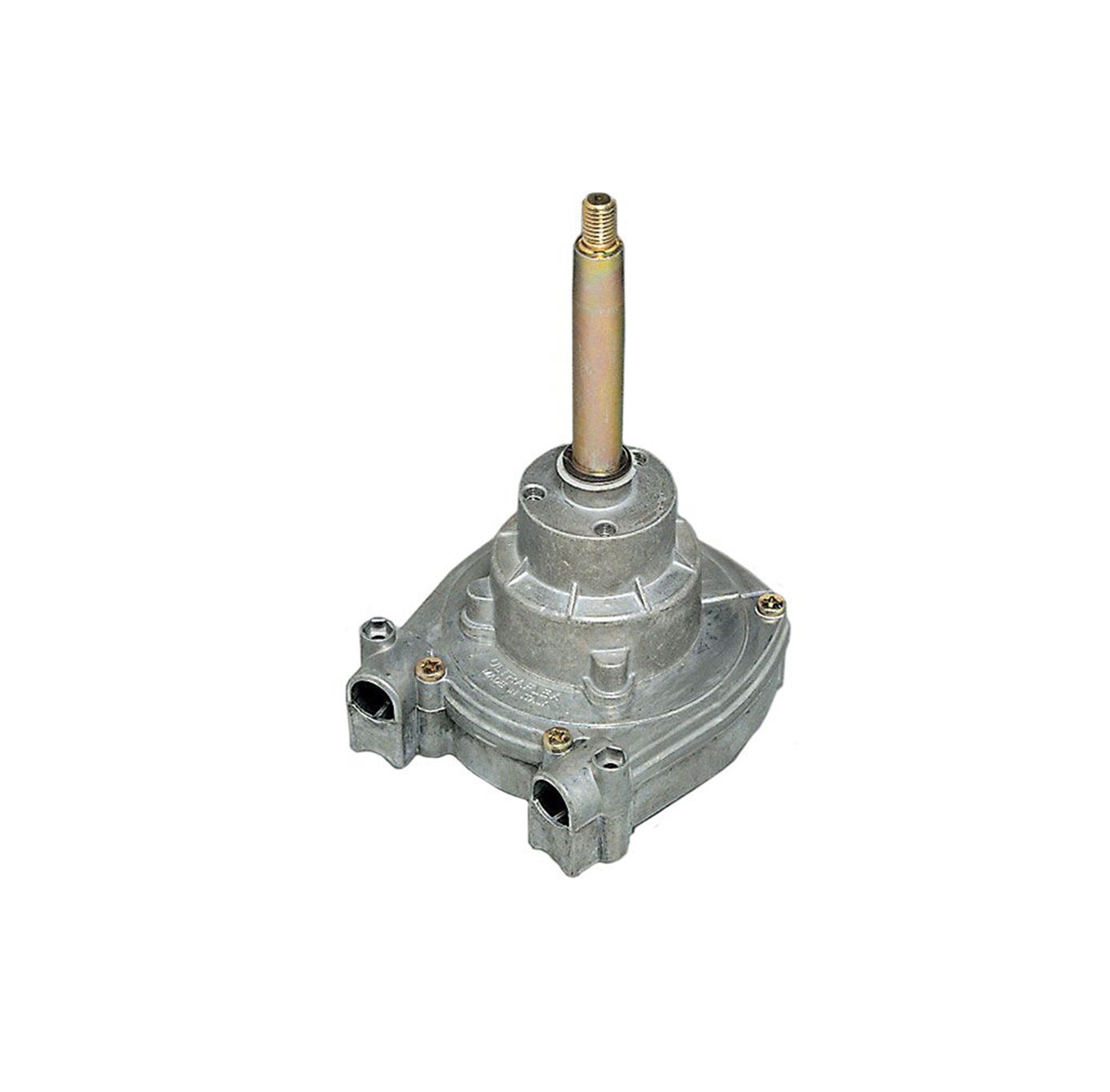

T73NRFC 38869 M No Feedback Rotary Helm
Easy and safe steering : a patented non-reversible mechanism eliminates the continuous load on the operator caused by the propeller torque.
T73NRFC 38869 M No Feedback Rotary Helm
Easy and safe steering : a patented nonreversible mechanism eliminates the continuous load on the operator caused by the propeller torque. Standard 3/4” tapered shaft All stainless steel cable output ends
Made exclusively in corrosion resistant materials Lock-to-lock steering wheel turns: approx 3.8
Stroke: 9” (228 mm) Maximum allowable steering wheel diameter: 16” (406 mm) Minimum steering cable bend radius: 7.9” (200 mm) T73NRFC steering system is not to be used on boats equipped with engines that exceed the maximum horsepower rating of the boat Available in package including the X34
bezel and M66 cable with ACCURA Exceeds EN 28848 safety standards Exceeds ABYC P17 safety standards
