Fourtech-I™ 10 Feet Rotary Packaged Steering System

Price: $188.99
  • SKUFourtech-10
- +

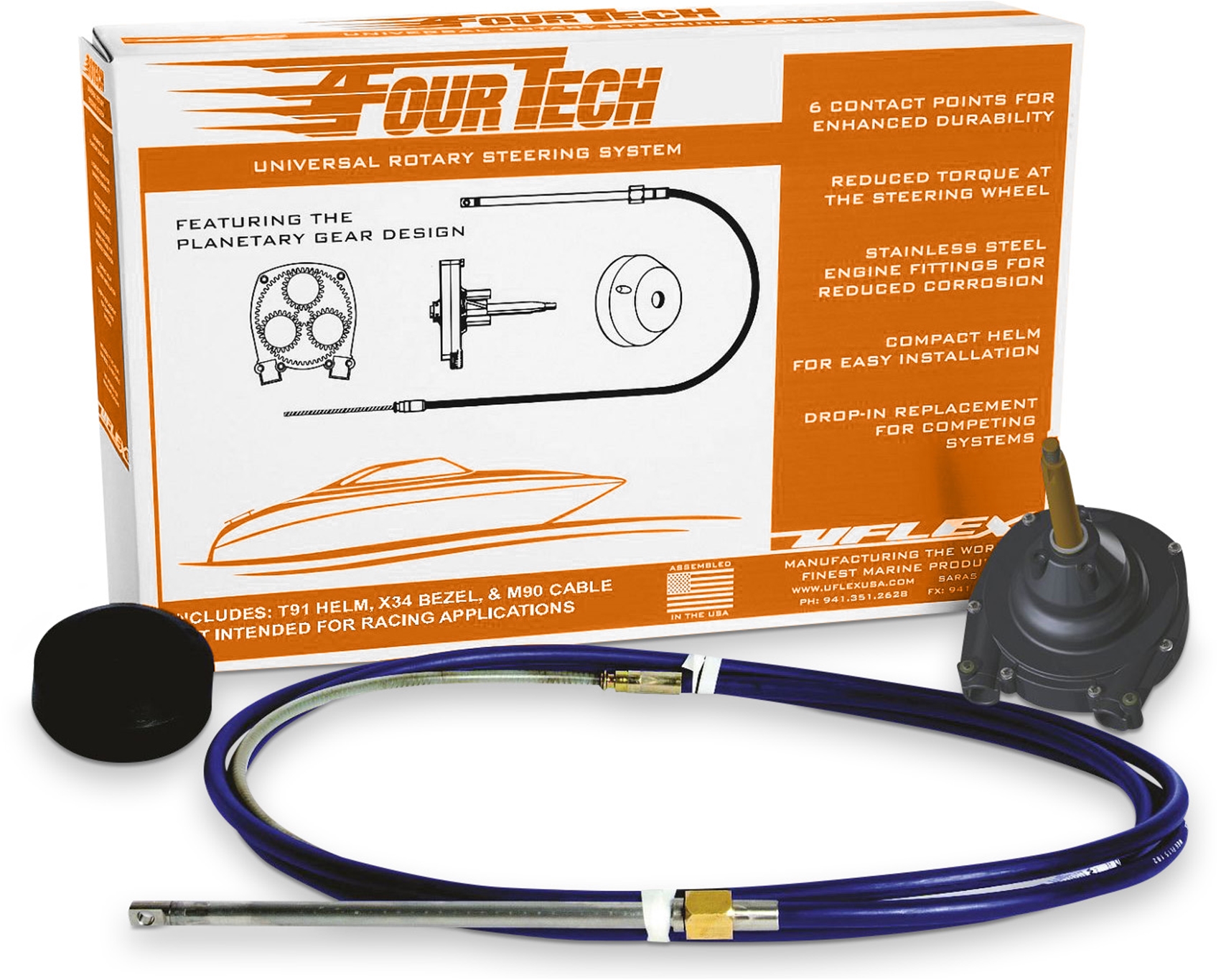

FOURTECH-1™ - T91 42647 S-helm, X34 36654 B-90° bezel, M90-steering cable. Steering Wheel Not Included.

Featuring the T91 helm with a Planetary Gear Design, the Fourtech offers performance, flexibility and durability increased by top quality materials and construction. Centered on the main drive shaft, this helm requires less room behind the dash and is a direct “drop in” replacement for competing system; requiring no new holes for installation.The package includes T91 helm (PLANETARY GEAR DESIGN), bezel and highly flexible M90 Mach cable (patented).

A COMPLETE STEERING SYSTEM CONSISTS OF:

Steering helm: T91 - 42647S - single cable steering helm Mounting bezel: X34 - 36654B - black, 90° mounting X34W - 40654C - white, 90° mounting X91 - 42850N - chrome plated, 90° mounting
X90 - 42646P - chrome, 90° mounting with lock X35 - 36655C - black, 20° mounting. Steering Wheel Not Included.

 Steering cable: M90 Mach (patented)

ATTENTION: M90 Mach steering cable is suitable for use also with T71FC, T72FC, T73NRFC, T81FC, T82FC, T83NRFC Ultraflex steering helms. M66 steering cable is not fit for T91, T93ZT, T101, T103ZT steering systems.

FEATURES AND TECHNICAL SPECIFICATIONS:

Specifically designed for high performance and high efficiency applications
M90 Mach cable (patented): performance, flexibility and durability increased by top quality materials and construction. Fast connect, simple installation, patented end fitting Stainless steel cable output end featuring patented gasket, engine side Corrosion resistant materials  Particularly suitable where clearance is limited Optional 90° or 20° installation Standard 3/4” tapered shaft Lock-to-lock steering wheel turns: approx. 4,2 Stroke: 9” (228 mm) Maximum allowable steering wheel diameter: 16” (406 mm) Minimum steering cable bend radius: 5.9” (150 mm) Minimal feedback Compact for mounting T93ZT steering system is not to be used on boats equipped with engines that exceed the maximum horsepower rating of the boat For boats faster than 50 mph our hydraulic steering systems are recommended Exceeds EN 28848 safety standards Exceeds ABYC P17 safety standards. (See how to choose the correct length when ordering)
