Accutech™ Packaged Steering Systems
M86 - preassembled rack and steering cable G98NR® 39649 C - anti-feedback X52 39250 U
Accutech™ Steering Systems Recommended for outboard applications or non power assisted sterndrives where there is limited space behind the dash, the Accutech features a patented spring clutch of the G98NR helm eliminates continuous loads while not actively changing direction. The M86 cable included with the Accutech has an armor wrapped stainless steel core for maximum efficiency and minimal lost motion.

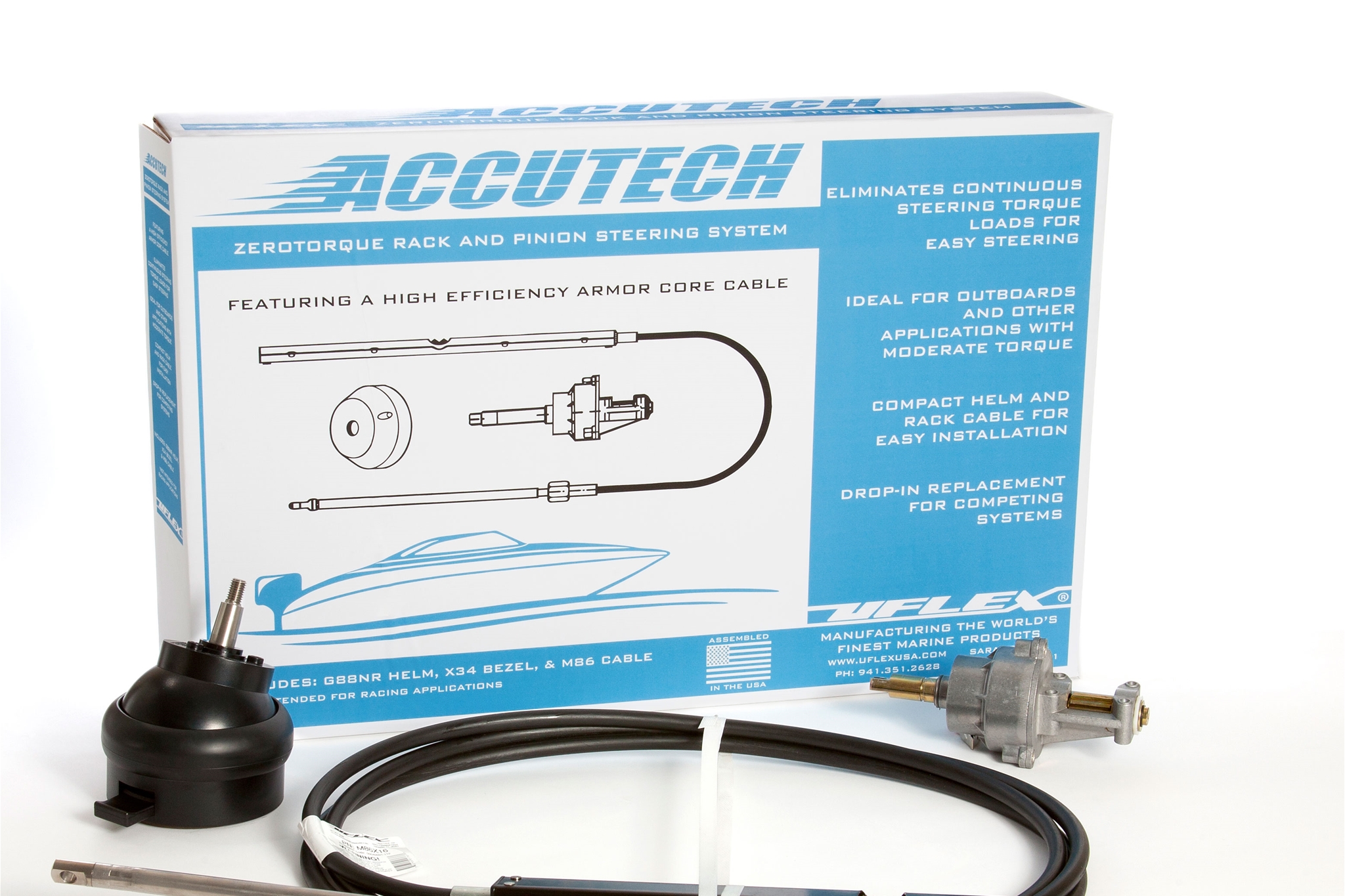

Whats In The Box
A COMPLETE STEERING SYSTEM
CONSISTS OF: Pre-assembled rack and steering cable: M86 Helm assembly:G98NR - 39649 L standard C anti-feedback Tilt mechanism: X52 - 39250 U NOTE: X52 tilt mechanism fits Ultraflex tilt mount rotary and rack and pinion steering helms as well as Ultraflex tilt mount hydraulic pumps except SilverSteer™ and MasterDrive™ steering systems.
FEATURES AND TECHNICAL SPECIFICATIONS
Easy and safe steering: the patented anti-feedback G98NR helm eliminates the continuous load on the operator caused by the propeller torque Fast, simple installation Tilt range of 48° and five locking positions Tilt device eliminates underdash movement Standard 3/4” tapered shaft - stainless steel.
All stainless steel cable output ends Made exclusively in corrosion resistant materials Lock-to-lock steering wheel turns: 3.5 Stroke: 8.2” (210 mm) Maximum allowable steering wheel diameter: 16.5” (420 mm) Minimum steering cable bend radius: 7.9” (200 mm) G96 steering systems are not to be used on boats equipped with engines that exceed the maximum horsepower rating of the boat Exceeds EN 28848 safety standards Exceeds ABYC P17 safety standards. (See how to choose the correct length when ordering).
