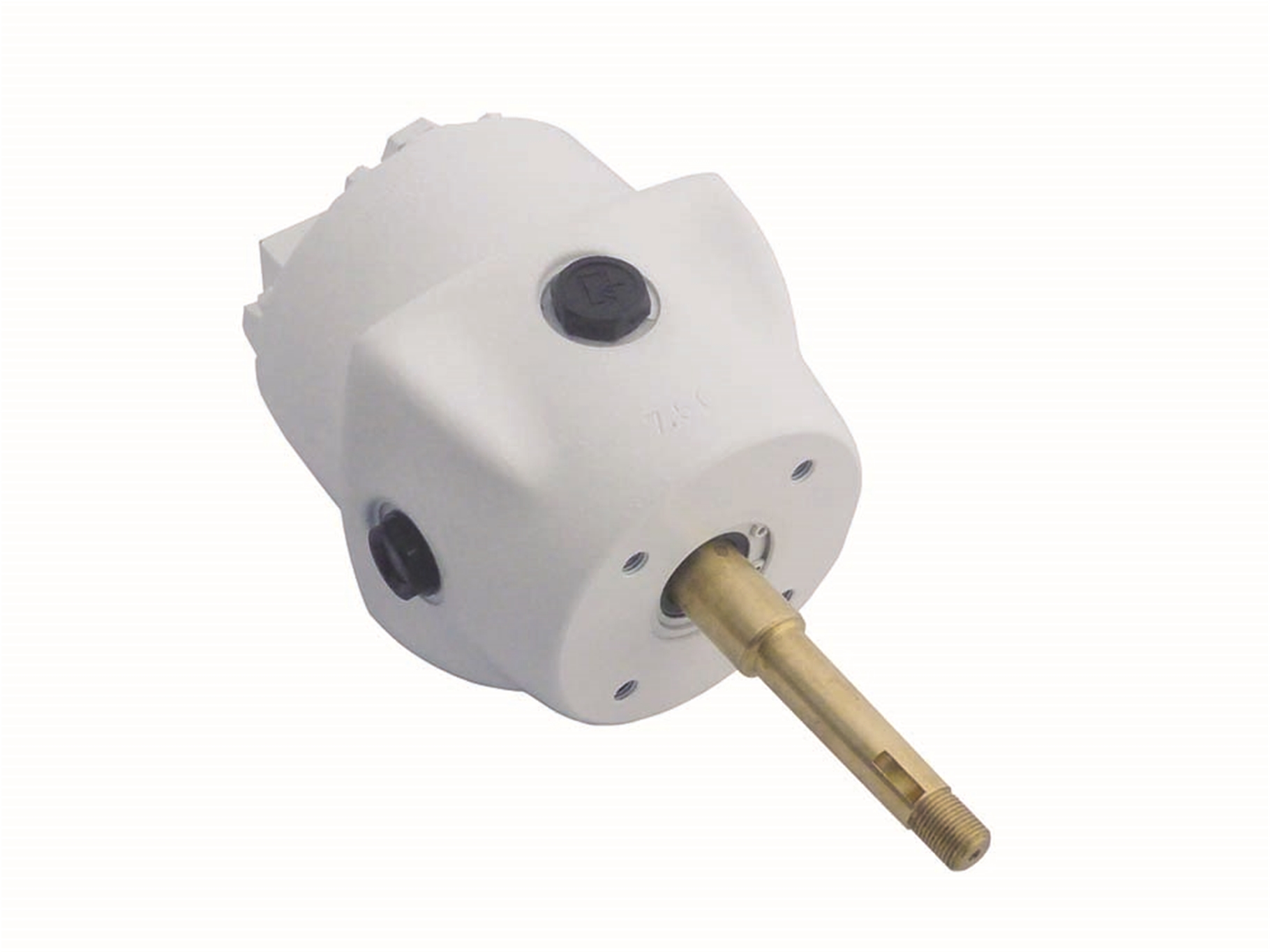

UP68I Intermediate Mount Hydraulic Helm Pump
Rear or intermediate mounting configuration Ball bearing piston race Built-in lock valve for positive rudder lock 3/4” tapered shaft Easily accessible lock valve and shaft seal for replacement Brass rotor for greater durability and longer life 3/8” BSPP fitting for 12 mm tube Complete with fittings.
WARNING: Applications with UP56 or UP68 pumps require the RV70 relief valve added to the system for over-pressure protection.
UP68I Intermediate Mount Hydraulic Helm Pump
Rear or intermediate mounting configuration Ball bearing piston race Built-in lock valve for positive rudder lock 3/4” tapered shaft Easily accessible lock valve and shaft seal for replacement Brass rotor for greater durability and longer life 3/8” BSPP fitting for 12 mm tube Complete with fittings.

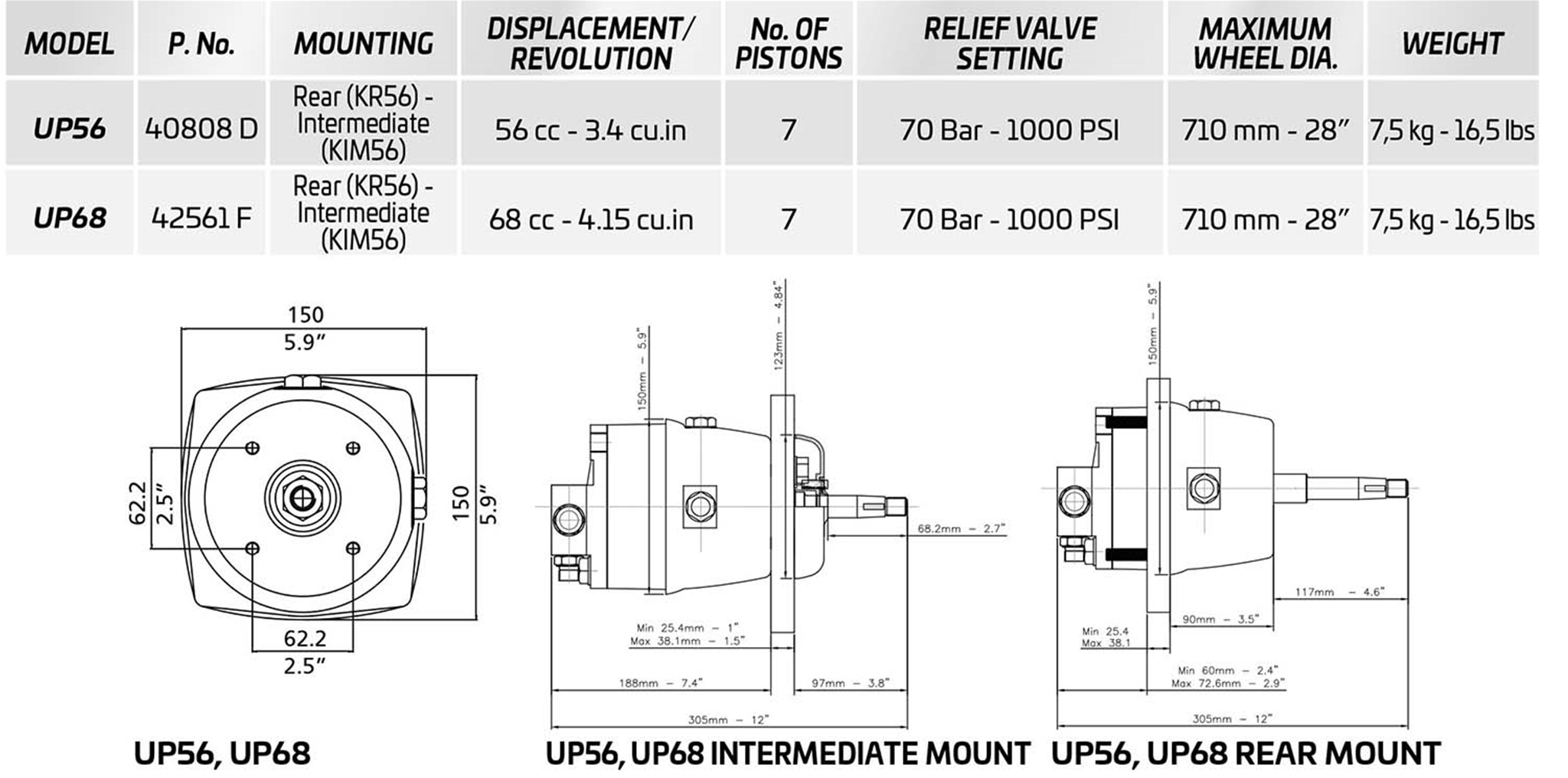

Kits Optional KR56 (optional) - 42558 T permits to install the UP56 and UP68 pumps in a rear mount position. Includes chrome plated cover ring. KIM56 (optional) - 42559 V hardware kit permits to install the UP56 and UP68 pumps in an intermediate mount position NOTE: UP56 or UP68 installation needs
either kit KR56 or KIM56 KIT F56 (optional) - 40813 W Remote fill adapter.
RV70 - 42560 D - RELIEF VALVE 70 BAR WARNING: Applications with UP56 or UP68 pumps require the RV70 relief valve added to the system for over-pressure protection.
