T101 42839B Tilt Steering Helm

Price: $179.99
  • SKUT101 42839B
- +

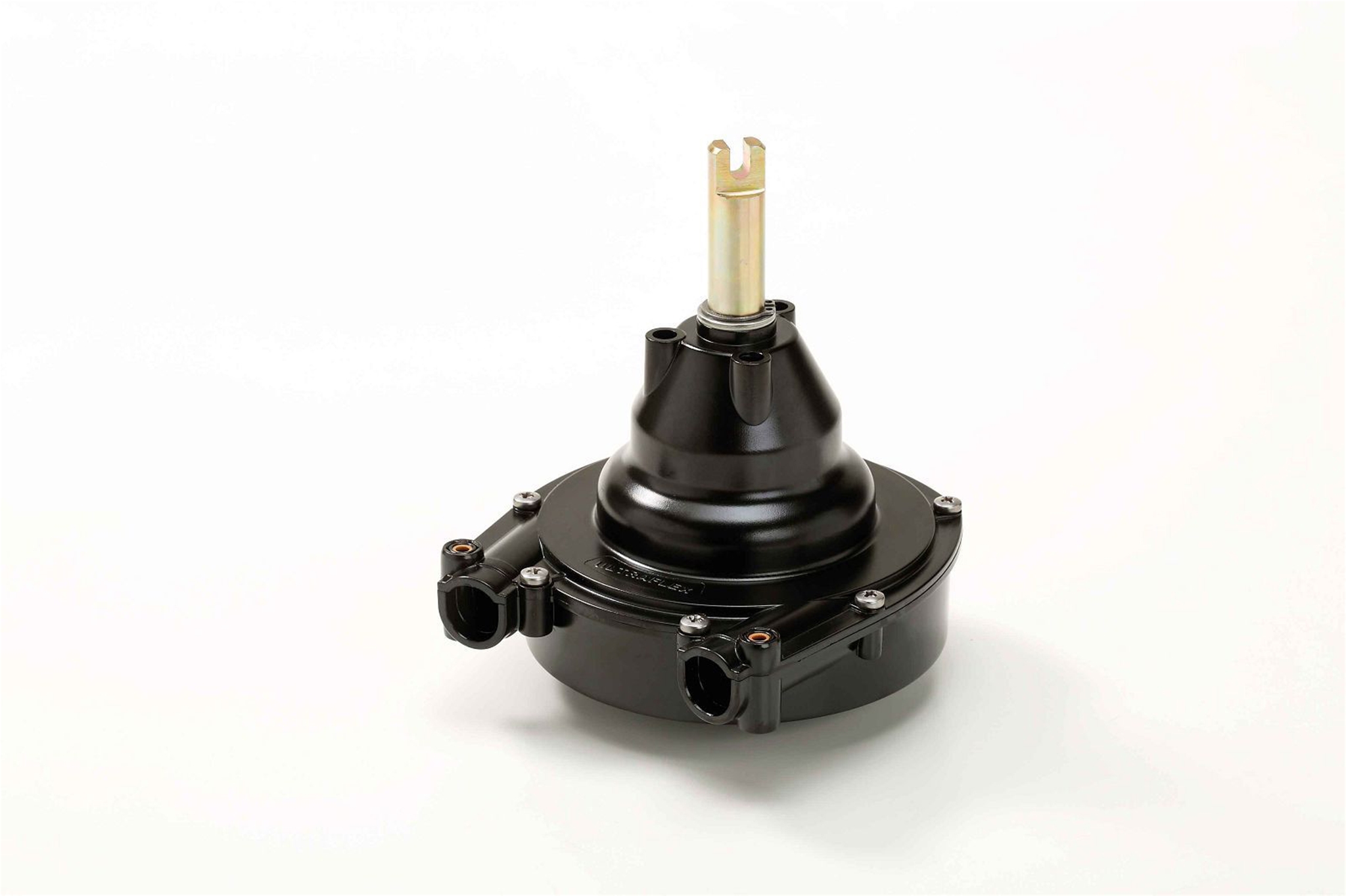

T101 - 42839 B - Tilt single cable steering helm
Specifically designed for high performance and high efficiency applications

T101 - 42839 B - Tilt single cable steering helm

FEATURES AND TECHNICAL SPECIFICATIONS:
Specifically designed for high performance and high efficiency applications. M90 Mach cable (patented): performance, flexibility and durability increased by top quality materials and construction. Tilt range of 48° and five locking positions. Fast connect, simple installation, patented end fitting. Tilt device eliminates under dash movement. Standard 3/4” tapered shaft - stainless steel. Engine side stainless steel cable output end featuring patented gasket. Corrosion resistant materials.

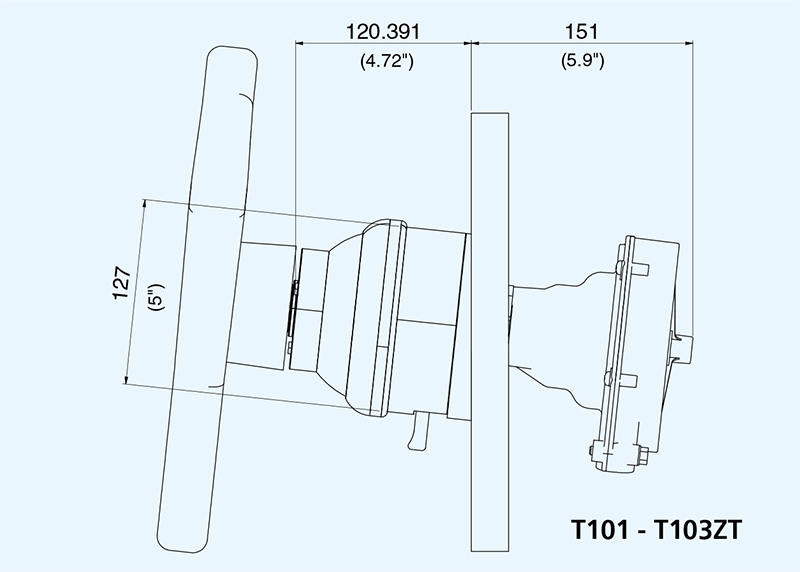

Lock-to-lock steering wheel turns: approx. 4,2 Stroke: 9” (228 mm). Maximum allowable steering wheel diameter: 16” (406 mm). Minimum steering cable bend radius: 5.9” (150 mm). T101 and T103ZT steering systems are not to be used on boats equipped with engines that exceed the maximum horsepower rating of the boat. For boats faster than 50 mph our hydraulic steering systems are recommended. Exceeds EN 28848 safety standards. Exceeds ABYC P17 safety standards.

T101 - 42839 B - Tilt single cable steering helm
