MD32T Tilt MasterDrive Outboard Steering System

Price: $2,995.99
- +

MasterDrive™ MD32T Single Station Retrofit Kit With Tilt Helm

Eliminates torque at the steering wheel. Three different select-able levels of power give the boater the desired feeling on the wheel (PATENTED).  Automatically reverts to manual mode in case of power loss.  High efficiency, low Amp draw  The system always running permits immediate control in any sea conditions  Equipped with safety switch ON/OFF (SMART BUTTON)  Can be used on dual station installations. Suitable for use with autopilot  Low noise  Voltage: 12VDC  CE marked in conformity with ABYC P21, ISO 10592 safety standards  Ignition protected (SAE J-1171 and UNI EN 28846)

MasterDrive™ MD32T Single Station Retrofit Kit

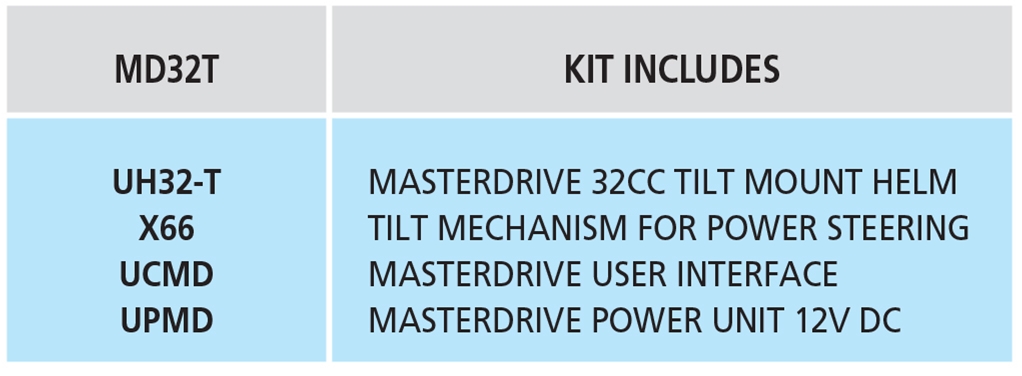

What's In The Box System Components:  1 single packaged KIT MD32T For Single Station Hydraulic Steering System
- 1 UH32-T Front Mount Master Helm With X66 Tilt Mechanism
- 1 UPMD Power Unit, 15’ (4,5 m) wiring harness included
- 1 UCMD User Interface
- 2 OIL 15 bottles of hydraulic oil

This is a retrofit kit only that does not include Cylinders, Hose Kits and Steering wheel.

Optional Second Station Kit Not included with the above listed MD Kit
1 KIT MD2: for dual station
Flexible hydraulic hoses
1 Tilt mechanism X66-40613 M suitable for Tilt Mount Helm. Tilt range of 48° and five locking positions.
1 Dual cylinder application Tie Bar: See Selection (Outboard Application Only)
1 Steering Wheel: See Selection

1 Instruction manual


The MasterDrive™ helms (both the UH Master and the UHD slave for a dual station), the UPMD Power Unit and the UCMD User Interface are the same products shown on the outboard MasterDrive™ system.
For more details please refer to the outboard MasterDrive™ section. See Ordering Guide below.
