MD32-2T Tilt Helm Single Cylnder Outboard MasterDrive™ Steering System
This Kit Contains 1 UC128-2-SVS Cylinder. Check Cylinder application Please click here to see application guide for correct engine.Eliminates torque at the steering wheel Three different selectable levels of power give the boater the desired feeling on the wheel (PATENTED). Automatically reverts to manual mode in case of power loss. High efficiency, low Amp draw The system always running permits immediate control in any sea conditions
Equipped with safety switch ON/OFF (SMART BUTTON) Can be used on dual station installations
Suitable for use with autopilot Low noise Voltage: 12VDC CE marked in conformity with ABYC P21, ISO 10592 safety standards Ignition protected (SAE J-1171 and UNI EN 28846)
MD32-2T Tilt Helm Single Cylinder Outboard MasterDrive™ Steering System
Eliminates torque at the steering wheel Three different select-able levels of power give the boater the desired feeling on the wheel (PATENTED). Automatically reverts to manual mode in case of power loss. High efficiency, low Amp draw The system always running permits immediate control in any sea conditions
Equipped with safety switch ON/OFF (SMART BUTTON) Can be used on dual station installations
Suitable for use with autopilot Low noise Voltage: 12VDC CE marked in conformity with ABYC P21, ISO 10592 safety standards Ignition protected (SAE J-1171 and UNI EN 28846)

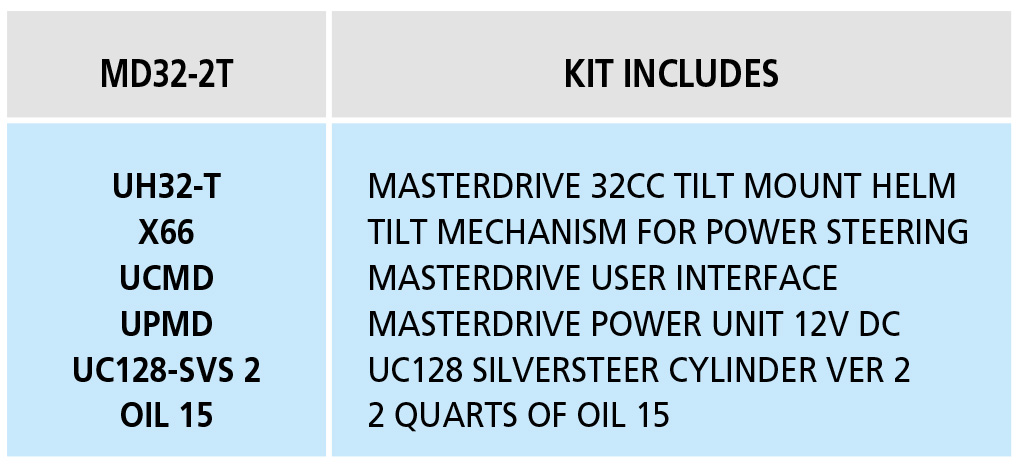

What's In The Box
1 single packaged KIT MD for single station containing:- 1 UH32-2T Tilt mount Master Helm with X66Tilt Mechanism
- 1 UPMD Power Unit, 15’ (4,5 m) wiring harness included
- 1 UCMD User Interface
- 2 qts OIL 15 bottles of hydraulic oil
-1 Instruction Manual
1 UC128-2-SVS Silversteer™ Steering Cylinder 1 UC128-2-SVS Cylinder See Chart below for engine configuration. Check Cylinder application Please click here to see application guide for correct engine.
Parts Not included and are ordered separate:
1 Steering Wheel If Needed: See Selection
1 KIT OB-SVS: SilverSteer™ high pressure hose kit complete with pre-assembled fittings.
1 KIT OB-DBR-SVS: SilverSteer™ high pressure hose kit complete with pre-assembled fittings for cylinder connection.
Ordering Guide For MD32-2T. Steering Wheel and Hose Kits are not included in kit and must be ordered separately.
