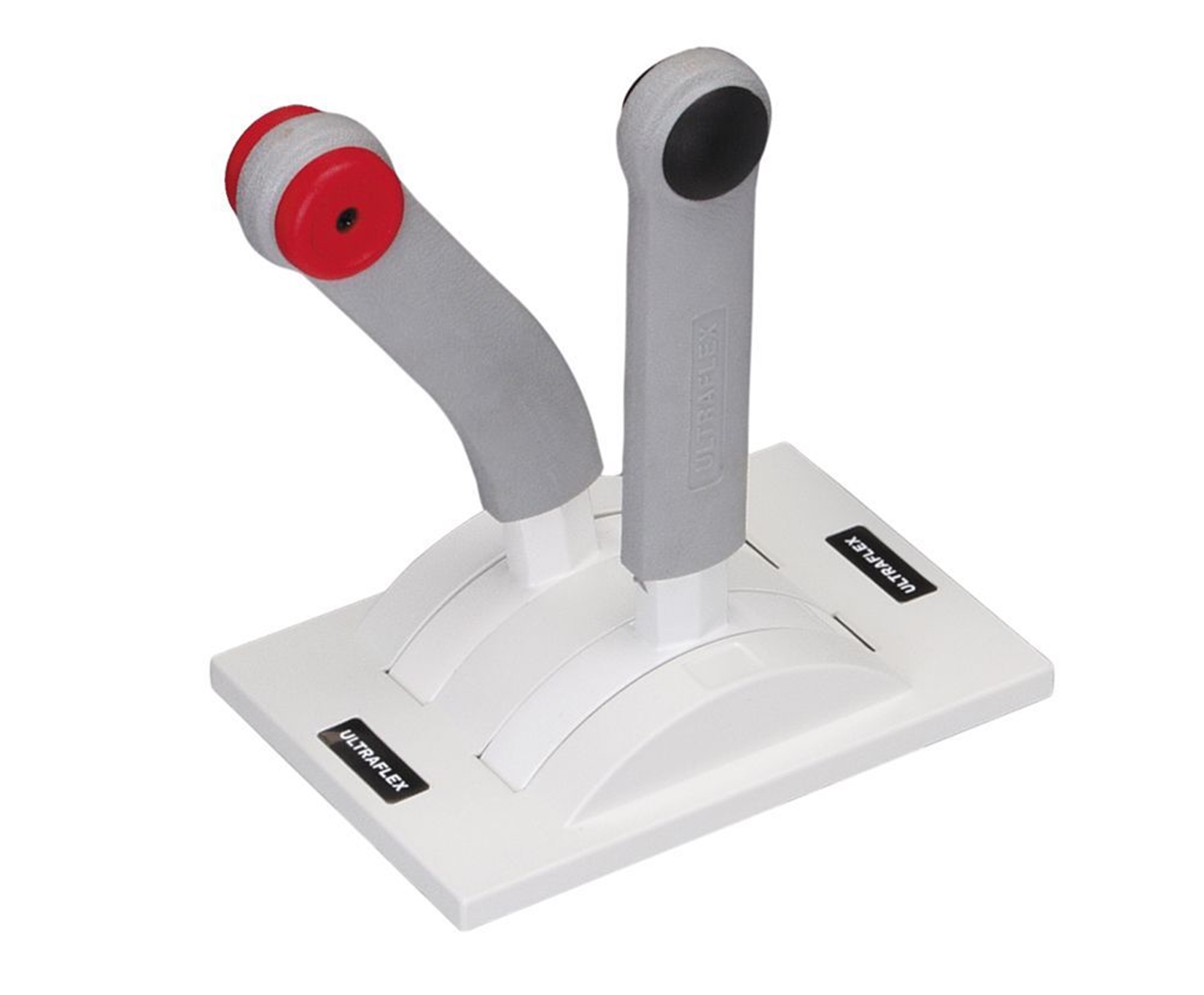

B208L Throttle & Shift With Interlock Port White

Price: $370.99
  • SKUB208L
- +

B208L Throttle & Shift With Interlock Port White

B208L Throttle & Shift With Interlock Starboard Installation Soft Two lever single action control: Each lever operates separately either the throttle or shift. Suitable for use with Outboard, Inboard or I/O power plants. Other Features include: Flush mount design makes this control suitable for exposed positions such as flying bridge. Levers structure made of die cast zinc provided with a soft thermoplastic ergonomic hand grip. Adjustable brake to avoid throttle creep and positive detente for shift. Adjustable ratchet for precise throttle operation obtained applying to the gas lever the optional Kit K52 - 37382B. Neutral safety switch prevents in gear starting. Racked throttle handle and straight gear handle for better maneuvering. B204 and B208 Controls are provided with an interlock kit to prevent accidental gear engagement. These controls are used with Ultraflex C2, C8 and C0 engine control cables. Ultraflex C22 cable requires K22 - 34713Q connection kit.

B208L Throttle & Shift With Interlock Port White

Flush mount suitable for exposed positions such as flying bridge  On hybrid versions, especially suitable for
jet boats, throttle or shift, or throttle and shift control is provided by a 0-5V voltage signal. The sensor has an analog output signal which can be single or redundant. For the hybrid controls, please contact our
Technical Service for custom configuration. Levers structure made of die cast zinc alloy provided with a soft thermoplastic ergonomic hand grip Adjustable brake to avoid throttle creep and positive detente for shift
 Provided with an interlock kit to prevent accidental gear engagement  Adjustable ratchet for precise throttle
operation obtained applying to the gas lever the optional kit K52 - 37382 B  Neutral safety switch X12 - 34543 Q included prevents in-gear starting  Raked throttle handle and straight gear handle for a better maneuvering  Supplied for right hand installation. Left hand installation available on request  Exceeds EN ISO 11547 standards when X12 safety switch is installed  For use with Ultraflex C2, C8, MACHZero
and all 33C style engine control cables. Ultraflex C22 and all 43C style cables require K22 - 34713 Q connection kit. Burl wood cover optional: X51 - 38985 P

Models Fully mechanical controls:
B204R - 37383 C - Throttle and shift – Black
B208R - 37654 C - Throttle and shift – White


Hybrid controls: Contact Sales for more information
Black finish:
B204R-ETC - 42832 L - Throttle controlled by an electric signal, shift by a mechanical cable.
B204R-ESC - 42775 B - Shift controlled by an electrical signal, throttle by a mechanical cable.
B204 ETSC - 42776 D - Throttle and shift controlled by an electrical signal.
White finish:
B208R-ETC - 42835 T - Throttle controlled by an electric signal, shift by a mechanical cable.
B208R-ESC - 42833 N - Shift controlled by an electrical signal, throttle by a mechanical cable.
B208 ETSC - 42831 R - Throttle and shift controlled by an electrical signal.

B203 and B204 Controler Specifications
