MasterDrive™ Outboard Hydraulic Power Assist Steering

Effortless steering for the most demanding applications!The MasterDrive™ power assist hydraulic steering system delivers fingertip control regardless of speed or torque conditions.

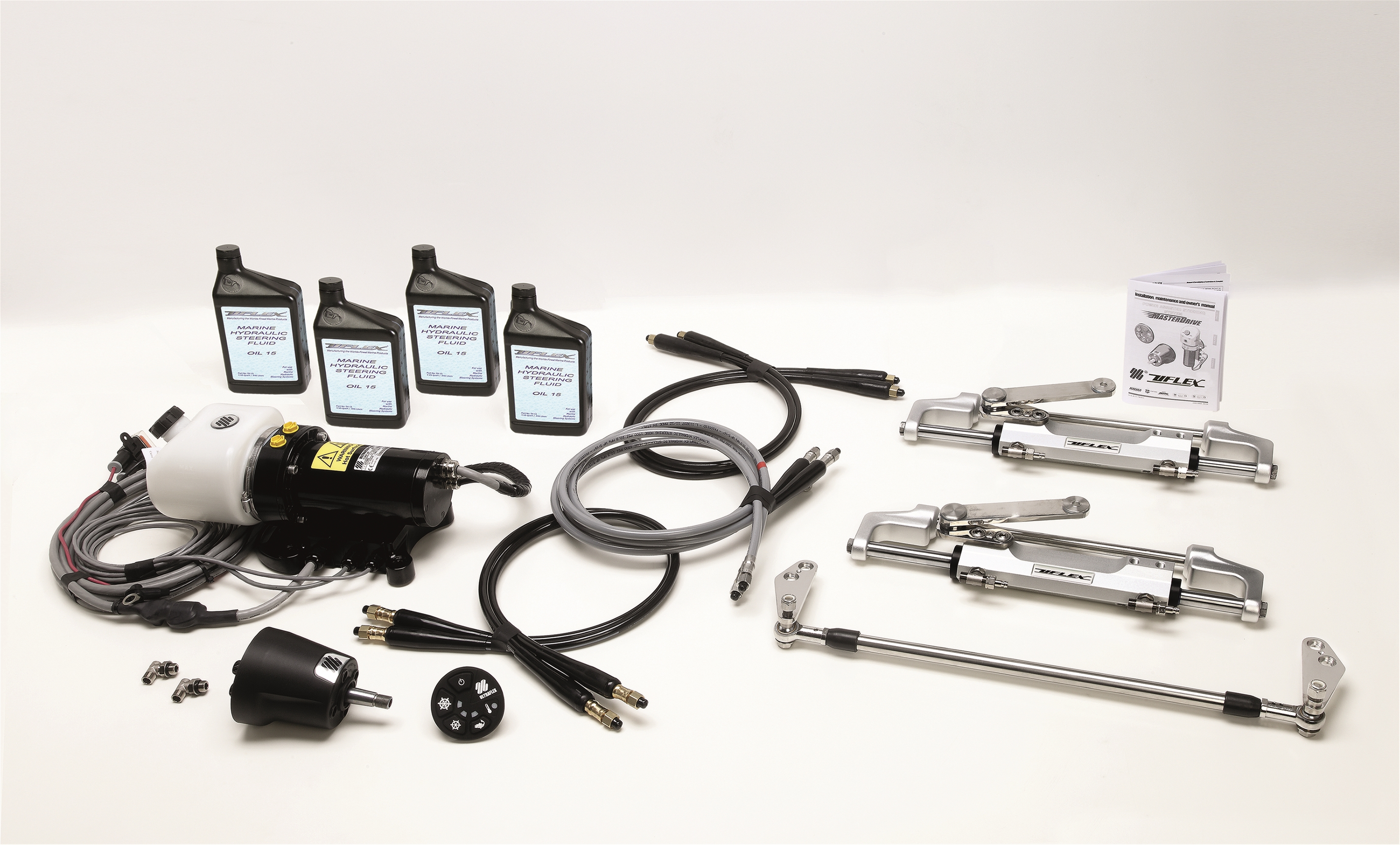

Outboard Hydraulic Power Assist Steering System

Effortless steering for the most demanding applications!The MasterDrive™ outboard hydraulic power assist steering system delivers fingertip control regardless of speed or torque conditions.

MasterDrive™ Outboard hydraulic Power Assist System Features
Eliminates torque at the steering wheel
Three different select-able levels of power give the boater the desired feeling on the wheel (PATENTED).
Automatically reverts to manual mode in case of power loss.
High efficiency, low Amp draw
The system always running permits immediate control in any sea conditions
Equipped with safety switch ON/OFF (SMART BUTTON)
Can be used on dual station installations
Suitable for use with autopilot
Low noise
voltage: 12VDC
CE marked in conformity with ABYC P21, ISO 10592 safety standards
Ignition protected (SAE J-1171 and UNI EN 28846)

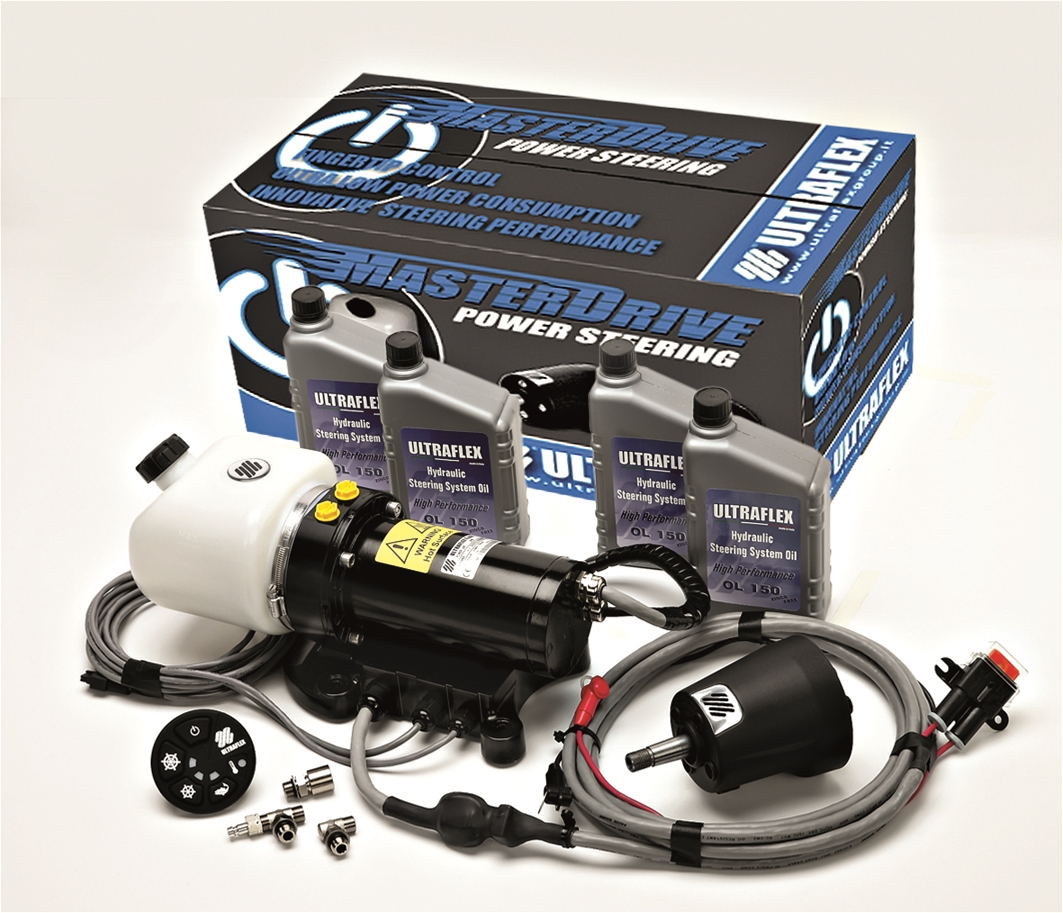

Inboard Hydraulic Power Assist Steering System

MasterDrive™ Inboard hydraulic Power Assist System Features
The MasterDrive™ helms (both the UH Master and the UHD slave for a dual station), the UPMD Power Unit and the UCMD User Interface are the same products shown on the outboard MasterDrive™ system. For more details please refer to the outboard MasterDrive™ section. You still need to choose a Hydraulic Cylinder and Hose kits required for your application.

MasterDrive™ Inboard Hydraulic Power Assist System Features
Eliminates torque at the steering wheel
Three different select-able levels of power give the boater the desired feeling on the wheel (PATENTED).
Automatically reverts to manual mode in case of power loss.
High efficiency, low Amp draw
The system always running permits immediate control in any sea conditions
Equipped with safety switch ON/OFF (SMART BUTTON)
Can be used on dual station installations
Suitable for use with autopilot
Low noise
Voltage: 12VDC
CE marked in conformity with ABYC P21, ISO 10592 safety standards
Ignition protected (SAE J-1171 and UNI EN 28846)

System Applications
- Max relief valve for the hydraulic steering system
- Control unit operation pressure: 35 bar
-Speed allowed 60 knots (65 knots for two engines, dual cylinder, counter rotating propeller applications)
