Fourtech-1 High Performance Mechanical Boat Steering Systems


Specifically designed for high performance and high efficiency applications, the Fourtech-1 boat steering system offers performance, flexibility and durability increased by top quality materials and construction.The Fourtech-1 package includes T91 helm (PLANETARY GEAR DESIGN), bezel and highly flexible M90 Mach cable (patented). The Fourtech-2 package includes T93ZT (zero torque configuration) helm, bezel and M90 Mach cable and presents the same technical features as Fourtech-1.

FOURTECH-1™ STEERING SYSTEM

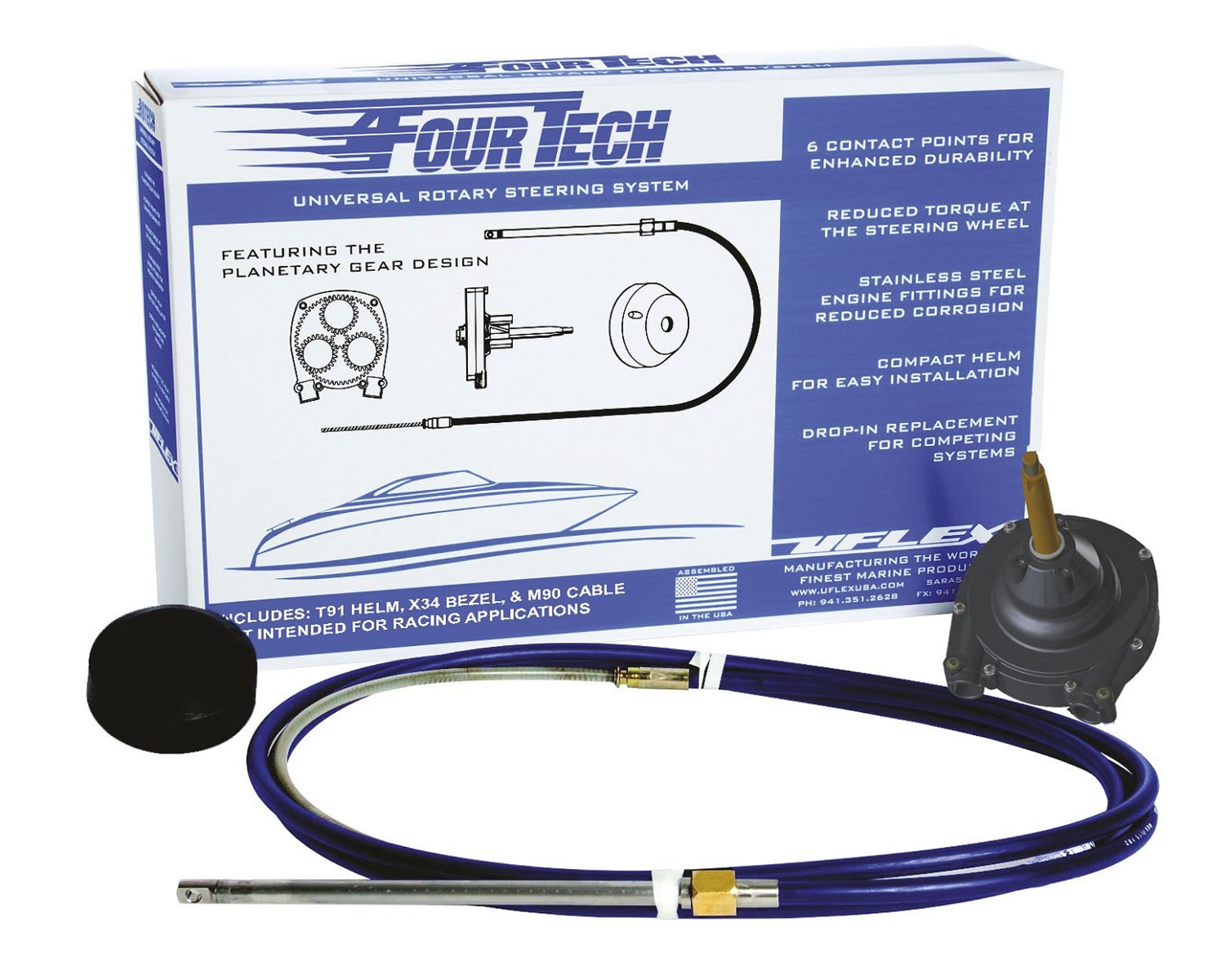

M90 Mach - steering cable Featuring the T91 high performance helm with a Planetary Gear Design, the Fourtech-1 mechanical boat steering system offers performance, flexibility and durability increased by top quality materials and construction. Centered on the main drive shaft, this helm requires less room behind the dash and is a direct “drop in” replacement for competing system; requiring no new holes for installation.The package includes T91 helm (PLANETARY GEAR DESIGN), bezel and highly flexible M90 Mach cable patented).Fourtech-1.


FOURTECH-1™ High Performance Boat Steering System

A Complete Steering System Consist Of:
Steering helm:T91 - 42647 S - single cable steering helm
Mounting bezel:
X34 - 36654 B - black, 90° mounting
X34W - 40654 C - white, 90° mounting
X91 - 42850 N - chrome, 90° mounting
X90 - 42646 P - chrome, 90° mounting with lock
X35 - 36655 C - black, 20° mounting
Steering cable: M90 Mach (patented)
ATTENTION: M90 Mach steering cable is suitable
for use also with T71FC, T72FC, T73NRFC, T81FC,
T82FC, T83NRFC Ultraflex steering helms. M66
will not fit the following Uflex helms: T91,
T93ZT, T101, T103ZT.

Features and Technical Specifications:
Specifically designed for high performance and high efficiency applications
M90 Mach cable (patented): performance, flexibility and durability increased by top quality
materials and construction.
Fast connect, simple installation, patented end fitting
Stainless steel cable output end featuring patented gasket, engine side
Corrosion resistant materials
Particularly suitable where clearance is limited
Optional 90° or 20° installation
Standard 3/4” tapered shaft
Lock-to-lock steering wheel turns: approx. 4,2
Stroke: 9” (228 mm)
Maximum allowable steering wheel diameter:
16” (406 mm)
Minimum steering cable bend radius:
5.9” (150 mm)
Minimal feedback
Compact for mounting
T91 steering system is not to be used on
boats equipped with engines that exceed the
maximum horsepower rating of the boat
For boats faster than 50 mph our hydraulic
steering systems are recommended
Exceeds EN 28848 safety standards
Exceeds ABYC P17 safety standards

Fourtech-1 Complete Mechanical Zero Torque Feedback Boat Steering System

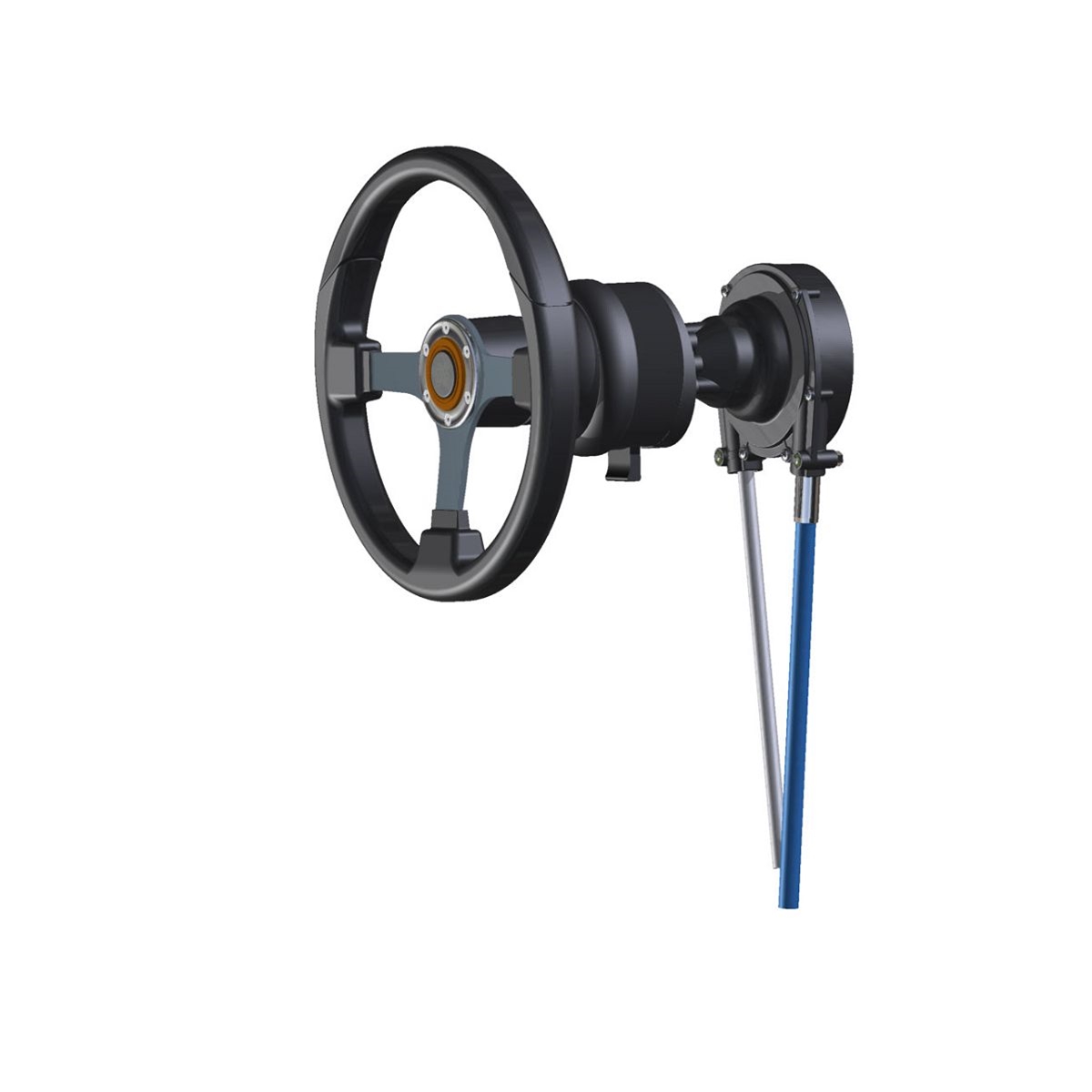

FOURTECH-1™ High Performance Boat Steering System Tilt Helm

A Complete Steering System Consist Of:
Steering helm: T101 - 42839 B - single cable steering helm
steering helm
Tilt mechanism:
X52 - 39250 U
NOTE: X52 tilt mechanism fits Ultraflex tilt
mount rotary and rack and pinion steering
helms.Steering cable: M90 Mach (patented)
ATTENTION: M90 Mach steering cable is
suitable for use also with T71FC, T72FC,
T73NRFC, T81FC, T82FC, T83NRFC Ultraflex
steering helms. M66 will not fit the
following Uflex helms: T91, T93ZT, T101,
T103ZT.

Features And technical Specifications:
Specifically designed for high performance
and high efficiency applications
M90 Mach cable (patented): performance,
flexibility and durability increased by top
quality materials and construction.
Tilt range of 48° and five locking positions
Fast connect, simple installation, patented
end fitting
Tilt device eliminates under-dash movement
Standard 3/4” tapered shaft - stainless steel
Engine side stainless steel cable output end
featuring patented gasket
Corrosion resistant materials
Lock-to-lock steering wheel turns: approx
4,2
Stroke: 9” (228 mm)
Maximum allowable steering wheel
diameter: 16” (406 mm)
Minimum steering cable bend radius:
5.9” (150 mm)
T101 and T103ZT steering systems are
not to be used on boats equipped with
engines that exceed the maximum
horsepower rating of the boat
For boats faster than 50 mph our hydraulic
steering systems are recommended
Exceeds EN 28848 safety standards
Exceeds ABYC P17 safety standards

Fourtech-1 Mechanical Zero Torque Feedback Boat Steering System
