Accutech Rack & Pinion NFB ZeroTorque Boat Steering Systems
For boats that do have space constraints, the Accutech steering package that consists of a helm, bezel and steering cable. The ZeroTorque version of the rack and pinion is the Accutech, which features a spring clutch to allow for smooth transition in and out of the ZeroTorque mode. These systems come with the M86 Rack steering cable which has an armor wrapped stranded wire core for high efficiency and smooth steering.
Recommended for outboard applications or non power assisted sterndrives where there is limited space behind the dash, the Accutech features a patented spring clutch of the G88NR helm eliminates continuous loads while not actively changing direction. The M86 cable included with the Accutech has an armor wrapped stainless steel core for maximum efficiency and minimal lost motion..

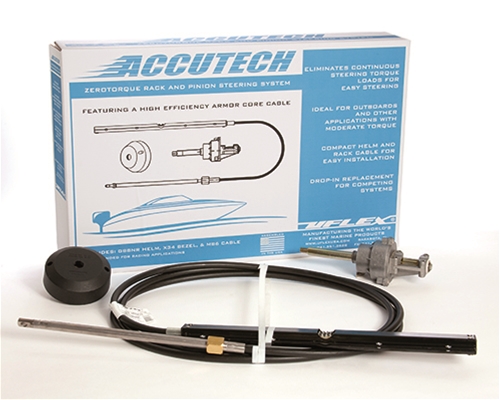

Accutech NFR Zero Torque Rack And Pinion Boat Steering System
FEATURES AND TECHNICAL SPECIFICATIONS
Easy and safe steering: patented anti-feedback G88NR helm eliminates the continuous load on the operator caused by the propeller torque. All stainless steel cable output ends Made exclusively in corrosion resistant materials.
Optional 90° or 20° installation. Standard 3/4”tapered shaft. Lock-to-lock steering wheel turns: 3.5. Stroke: 8.2” (210 mm). Maximum allowable steering wheel diameter: 16.5” (420 mm).
Minimum steering cable bend radius: 7.9” (200 mm). G88 NR steering systems are not to be used on boats equipped with engines that exceed the maximum horsepower rating of the boat Available in package includes X34 bezel and M86 cable with RACKTECH and ACCUTECH. See full details on the Accutech NFR Zero Torque Rack And Pinion Boat Steering System

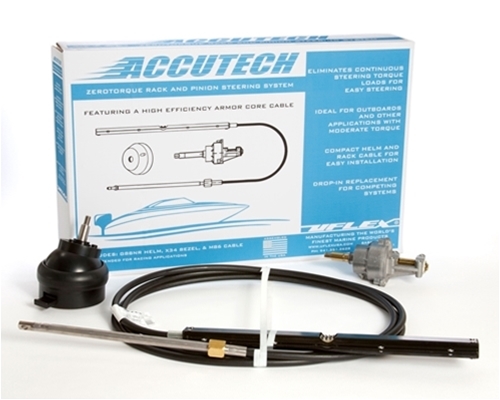

Accutech NFR Rack And Pinion Boat Steering System With Tilt
FEATURES AND TECHNICAL SPECIFICATIONS
Easy and safe steering: the patented anti-feedback G98NR helm eliminates the continuous load on the operator caused by the propeller torque Fast, simple installation Tilt range of 48° and five locking positions Tilt device eliminates under dash movement.
Standard 3/4” tapered shaft - stainless steel. All stainless steel cable output ends. Made exclusively in corrosion resistant materials. Lock-to-lock steering wheel turns: 3.5. Stroke: 8.2” (210 mm). Maximum allowable steering wheel diameter: 16.5” (420 mm).
Minimum steering cable bend radius: 7.9” (200 mm). G98NR® steering systems are not to be used on boats equipped with engines that exceed the maximum horsepower rating of the boat. Available in package includes X34 bezel and M86 cable with RACKTECH and ACCUTECH. See full details on the Accutech NFR Rack And Pinion Boat Steering System With Tilt
