Accura NFB No-Feedback Zero Torque Boat Steering Systems


For outboard boats, sterndrives without power assist or other applications with moderate torque loads it is recommended to upgrade to system with a clutch or gears which automatically lock out the steering torque while the system is not actively being turned. Uflex offers the Accura system with the same Planetary Gear Design but in a ZeroTorque configuration, which does not require a constant effort on the steering wheel to keep the boat going straight or in the intended direction.

A special spring clutch olds the steering system on its intended course until the next change in the direction is initiated by the driver. With a patented spring clutch the Accura eliminates continuous loads on the steering wheel while the direction of the boat is not being actively changed, which is highly recommended for outboard and sterndrives without power assist. The T73NRFC anti-feedback helm included with the Accura package also features a Planetary Gear Design for smooth and more balanced steering effort. A direct drop in replacement for competing systems, the Accura also comes with the M66 Universal Rotary Steering Cable with stainless steel output fittings for maximum longevity and smooth steering.

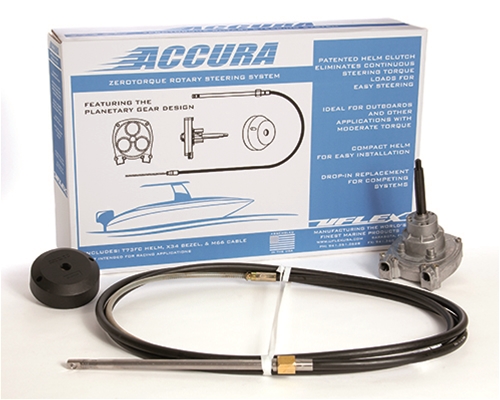

Accura NFB Zero Torque Mechanical Boat Steering System

FEATURES AND TECHNICAL SPECIFICATIONS

Easy and safe steering with a patented non reversible mechanism eliminates the continuous load on the operator caused by the propeller torque. Fast connect, simple installation Compact rotary helm unit: the central location of the steering shaft makes these systems the most compact in their class.

Most suitable where clearance is limited. Ideal for outboards and surfacing propellers. Optional 90° or 20° installation. Standard 3/4” tapered shaft. All stainless steel cable output ends. Made exclusively in corrosion resistant materials.

Lock-to-lock steering wheel turns: approx 3.8. Stroke: 9” (228 mm). Maximum allowable steering wheel diameter: 16” (406 mm). Minimum steering cable bend radius: 7.9” (200 mm). T73NRFC steering system is not to be used on boats equipped with engines that exceed the maximum horsepower rating of the boat. See full details about the Accura NFB Zero Torque Mechanical Boat Steering System

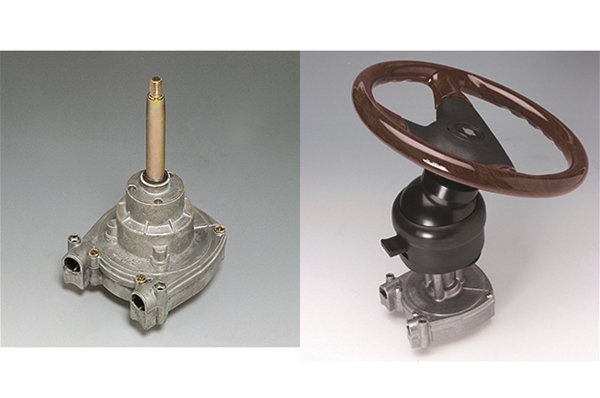

Accura NFB Zero Torque No-Feedback Tilt Boat Steering System

FEATURES AND TECHNICAL SPECIFICATIONS

Tilt range of 48° and five locking positions. Fast connect, simple installation. Tilt device eliminates under dash movement. Standard 3/4” tapered shaft - stainless steel. All stainless steel cable output ends.Corrosion resistant materials. Lock-to-lock steering wheel turns: approx. 3.8. Stroke: 9” (228 mm). Maximum allowable steering wheel diameter: 16” (406 mm).

Minimum steering cable bend radius: 7.9” (200 mm). T83NRFC steering systems are not to be used on boats equipped with engines that exceed the maximum horsepower rating of the boat. For boats faster than 50 mph our hydraulic steering systems are recommended. Exceeds EN 28848 safety standards Exceeds ABYC P17 safety standards. Easy installation with the Accuran NFB system.

See full details about the  Accura NFB Zero Torque Mechanical Boat Steering System
